Application of ASTM 106 Carbon Seamless Steel Pipe
Pipe ordered under this specification shall be suitable for bending, flanging, and similar forming operations, and for welding. When the steel is to be welded, it is presupposed that a welding procedure suitable to the grade of steel and intended use or service will be utilized.Details of ASTM A106 Seamless Steel Pipe We can supply
Manufacture:Seamless process, cold drawn or hot rolled Cold drawn: O.D.: 15.0～100mm W.T.: 2～10mm Hot rolled : O.D.: 25~700mm W.T.: 3~50mm Grade: Gr.A, Gr.B, Gr.C. Length: 6M or specified length as required. Ends: Plain End, Beveled End, ThreadedManufacturing Process of ASTM A106 Seamless Steel Pipe
ASTM A106 seamless steel pipe are produced either by cold-drawn or hot rolled, as specified. Hot finished pipe need not heat treated. When hot finished pipe is heat treated ,it shall be heat treated at a temperature of 1200°F or higher. Cold drawn pipe shall be heat treated after final cold draw pass at a temperature of 1200°F or higher.Chemical Composition of ASTM A106 Seamless Steel Pipe
Grade and Chemical Composition (％)| Grade | C≤ | Mn | P≤ | S≤ | Si≥ | Cr≤ | Cu≤ | Mo≤ | Ni≤ | V≤ |
| A | 0.25 | 0.27-0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Mechanical Properties of ASTM A106 Seamless Steel Pipe
|
Grade |
Rm Mpa Tensile Strength |
Mpa Yield Point | A％ Elongation |
Delivery Condition |
| A | ≥330 | ≥205 | 20 | Annealed |
| B | ≥415 | ≥240 | 20 | Annealed |
| C | ≥485 | ≥275 | 20 | Annealed |
Ordering information
Quantity ( feet, meters, or number of lengths) Name of material(seamless carbon steel pipe) Grade Manufacture (hot rolled or cold drawn) Size (outside or inside diameter, normal wall thickness) Special outside diameter tolerance pipe Inside diameter tolerance pipe, over 10 inch. Length (specific or random) Optional requirement. NDT reports, e.gPermissible Variations in Weight and Dimensions
Marking for ASTM A106 Black Seamless Steel Pipe
- Manufacturer's name or mark
- Specification number(year-date or required)
- Size( OD, W.T, length)
- Grade( A or B)
- Type of pipe( F, E, or S)
- Test pressure( seamless steel pipe only)
- Heat Number
- Any additional information specified in the purchase order.
Mechanical and NDT Tests for ASTM A106 Black Seamless Steel Pipe
Appearance for ASTM A106 Black Seamless Steel Pipe
Dimension tolerance of ASTM A106 Seamless Steel Pipe
Dimension Tolerances：| Pipe Type | Pipe Sizes | Tolerances | |
| Cold Drawn | OD | ≤48.3mm | ±0.40mm |
| ≥60.3mm | ±1％mm | ||
| WT | ±12.5％ | ||

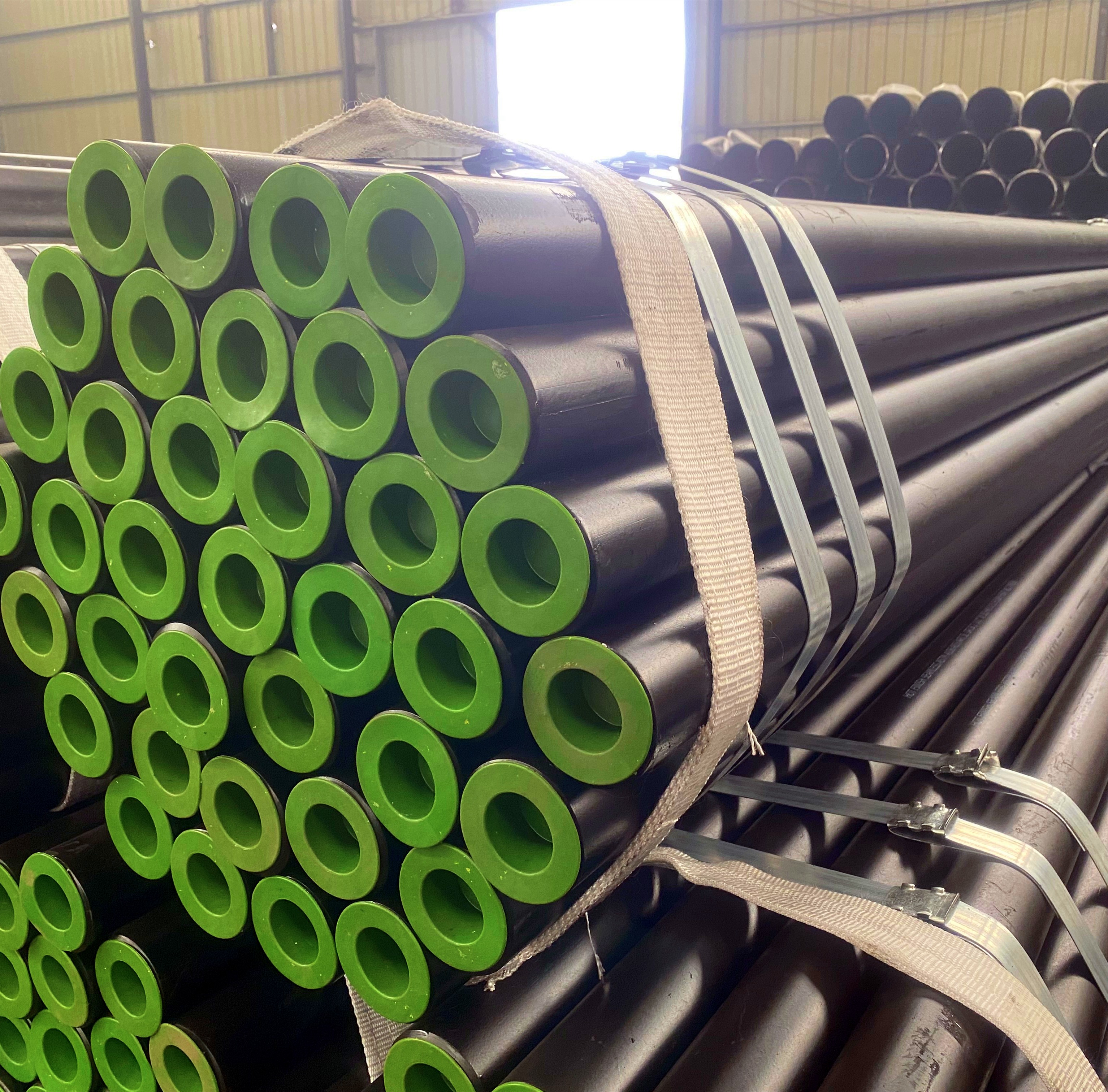

Packing for ASTM A106 Black Seamless Steel Pipe
- Bare pipe or Black / Varnish coating ( customized);
- 6" and below in bundles with two cotton slings;
- Both ends with end protectors;
- Plain end, bevel end(2" and above with bevel ends, degree: 30~35°) ,threaded and coupling;
- Marking.
